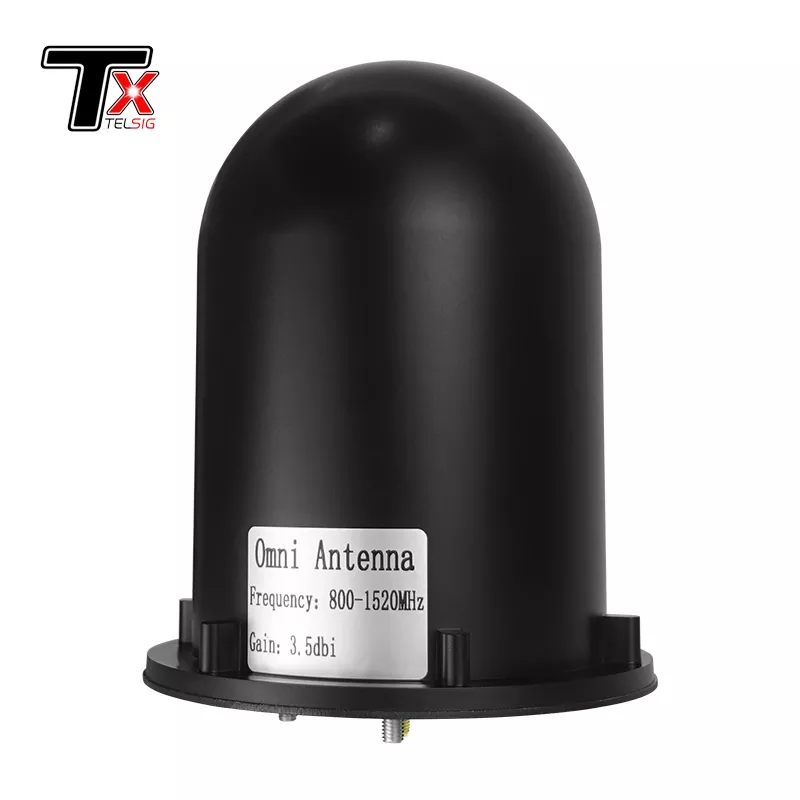

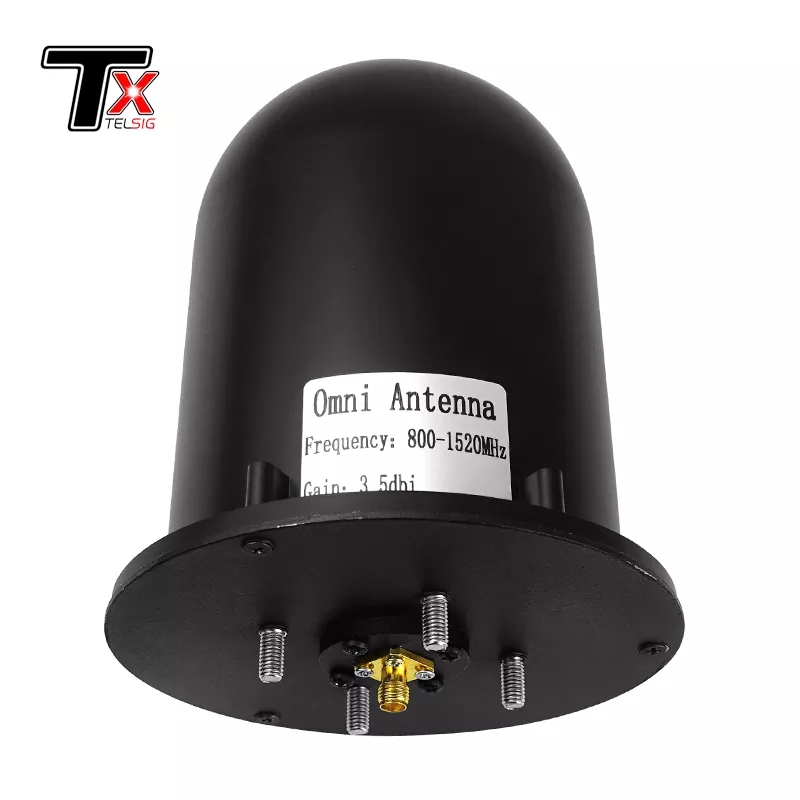

Antena Polarisasi Sirkuler OMNI 800-1620 MHz 3.5 dBi beroperasi ing rentang frekuensi 800 nganti 1620 MHz, saengga kompatibel karo akeh piranti lan sistem nirkabel. Antena iki nyedhiyakake jangkoan sinyal omnidirectional 360 derajat, saéngga njamin panrima sing stabil ing sembarang arah.
|
Karakteristik listrik |
|
|
Rentang frekuensi |
800-1620MHz |
|
Gain (dBi) |
3.5±0.5dBi |
|
KSVN |
≤2 |
|
Polarisasi |
Vertikal |
|
Jembar Beam Horisontal (0º) Jembar Beam Vertikal (0º) |
360º 55±5º |
|
ovality (dB) |
≤±2dB |
|
Impedansi Input (Ohm) |
50Ω |
|
Daya input maksimal (W) |
50W |
|
Tipe konektor input |
SMA-K |
|
Karakteristik mekanik |
|
|

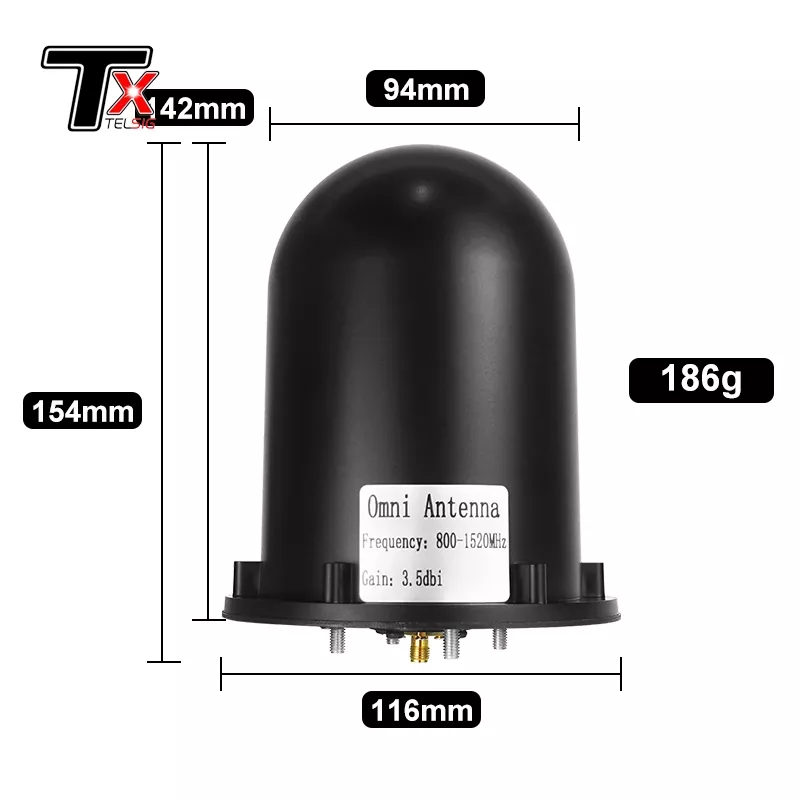

Ukuran mm (Dhuwur/Jembar/Dhuwur) |
ɸ115*140mm |
|
Ukuran Paket (mm) |
470*350*220mm(20PCS) |
|
Bobot antena (kg) |
0.35KG |
|
Kacepetan angin sing dirating (m/s) |
31m/s |
|
Kelembapan Operasi (%) |
10-95 |
|
Warna fairing |
ireng |
|
Bahan fairing |
ABS |
|
Suhu Operasi (ºC) |
-40~55º |
|
Cara instalasi |
Instalasi mesin |
